Agrola GT4

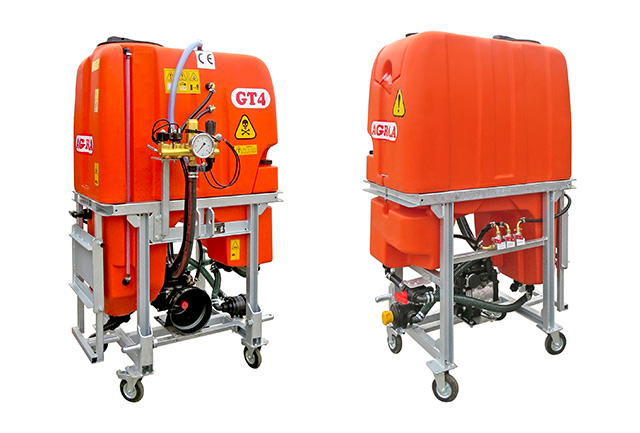

Agrola GT4 is a herbicide sprayer intended for the most demanding growers, who need high quality and comfort of work. The sprayer is equipped with a polyethylene tank, an Italian pump Annovi&Reverberi model AR70bp and solenoid valve Braglia. In combination with a solid hot-dip galvanized frame, transport wheels and high ergonomics, it ensures comfort of use. It is also worth mentioning that due to the small width of 103 cm, the sprayer does not protrude beyond the outline of most popular orchard tractors.
Pump - diaphragm, manufactured by a renowned Italian company Annovi & Reverberi.
Model AR70bp with max flow 72 lpm and max pressure 20 bar (max operating pressure 10 bar) ensures receiving a full range of pressures and capacity of liquids needed to perform herbicide treatments and proper mixing of liquids in the tank.
Control unit - according to the clients' needs, we offer two equipment options:
Braglia - 2 sections solenoid valve with on / off control panel and a manual pressure control valve that is installed on the sprayer.
Arag - electric control unit (2 sections valves, main valve, proportional control valve) with a control box.
Tank - made of high quality polyethylene which ensures durability and resistance to damage. It contains three parts: a main tank with a nominal capacity of 400 l; a tank of clean water for rinsing the circuit and a tank of clean water for washing hands.
Frame - specially designed from high quality structural steel that is protected against corrosion by hot dip galvanizing. It forms solid and durable machine base.
Lighting system (optional equipment) - lighting that gives visible light from a distance is a necessary addition when the machine drives on roads. Lighting system installation - rear, composite LED lamps (position, directional and stop lights) + warning triangle for agricultural machinery.
PTO Drive shaft (optional equipment) (torque 400Nm, length 800mm)
* - to drive the sprayer it is necessary to use a PTO drive shaft that has the CE mark and safety shield kit.
Parameters:
Number of sections for connecting booms - 2
Required power [HP] -
Max RPM 540
Max allowed operating pressure 10bar [1MPa]
Max allowed travelling velocity 15km/h
*- power demand depends mainly on the terrain conditions. In a mountainous terrain or wetlands, it may be necessary to use tractors with more power.
Overall dimensions
Height - 1,75m | Width - 1,03m | Length - 1,0m; –
Unladen weight - 135kg | Max authorised weight - 590kg;
* - some of the given dimensions and parameters may differ from the actual ones due to the type of equipment used, e.g. control unit type, etc..
* - some of the components described or shown in the pictures are optional equipment offered at an additional cost.
* - the manufacturer reserves the right to introduce changes related to the continuous improvement of the structure and to remove individual models from production.
