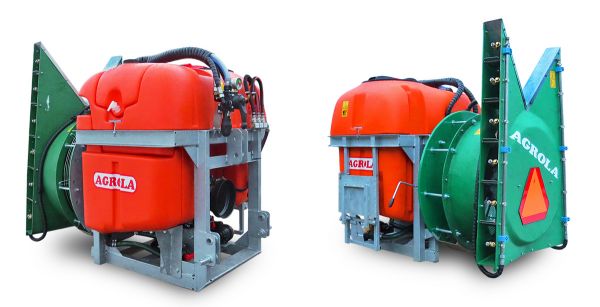

Agrola 400 SAD-K, Agrola 600 SAD-K
Agrola 400 SAD-K and Agrola 600 SAD-K mounted orchard sprayers are designed primarily for small specialised orchard farms. They are characterized by high quality of components and very good workmanship. It works perfectly in dwarf orchards, vineyards and on plantations of berry bushes.
Blower - a deflector with reversed air intake is equipped with an axial 800mm fan, two-speed multiplier gearbox (2+N), twelve double nozzle holders with anti-drip valve and two sets of spray tips.
Pump - diaphragm, high pressure manufactured by a renowned Italian company Annovi & Reverberi.
Model AR1203 with max flow 116 lpm and max pressure 50 bar (max operating pressure 20 bar) ensures receiving a full range of pressures and capacity of liquids needed to perform plant protection treatments and proper mixing of liquids in the tank.
Control unit - according to the clients' needs, we offer two equipment options:
Braglia - 2 sections solenoid valve with on / off control panel and a manual pressure control valve that is installed on the sprayer.
Arag - electric control unit (2 sections valves, main valve, proportional control valve) with a control box.
Tank - made of high quality polyethylene which ensures durability and resistance to damage. It contains three parts: a main tank with a nominal capacity of 400 l or 600 l; a tank of clean water for rinsing the circuit and a tank of clean water for washing hands.
Frame - specially designed from high quality structural steel that is protected against corrosion by hot dip galvanizing. It forms solid and durable machine base.
Lighting system (standard equipment) - lighting that gives visible light from a distance is a necessary addition when the machine drives on roads. Lighting system installation - rear, composite LED lamps (position, directional and stop lights) + warning triangle for agricultural machinery.
Lighting of nozzles with LED (optional equipment).
PTO Drive shaft (optional equipment) (torque 400Nm, length 800mm)
* - to drive the sprayer it is necessary to use a PTO drive shaft that has the CE mark and safety shield kit.
Parameters
Spraying level: vertically 3m | horizontally 5m
Max air capacity 40 000 m3/h
Required power [HP]: Agrola 400 V3 SAD-K - 35-50HP | Agrola 600 V3 SAD-K - 40-50HP
Max RPM 540
Max allowed operating pressure 20 bar (2 MPa)
Max allowed travelling velocity 15km/h
*- power demand depends on operating parameters; efficiency of the fan and working pressure. In a mountainous region or wetlands, it may be necessary to use tractors with more power.
*- spraying level depends on the work parameters, weather conditions and "foliage of trees"
Overall dimensions
Agrola 400 V3 SAD-K - Height - 1,5m | Width - 1,3m | Length – 1,6m
Unladen weight - 325kg | Max authorised weight - 790kg
Agrola 600 V3 SAD-K - Height - 1,5m | Width - 1,3m | Length – 1,6m
Unladen weight - 335kg | Max authorised weight - 1000kg
*- some of the given dimensions and parameters may differ from the actual ones due to the type of equipment used, e.g. control unit type, etc.
* - some of the components described or shown in the pictures are optional equipment offered at an additional cost.
* - the manufacturer reserves the right to introduce changes related to the continuous improvement of the structure and to remove individual models from production.
