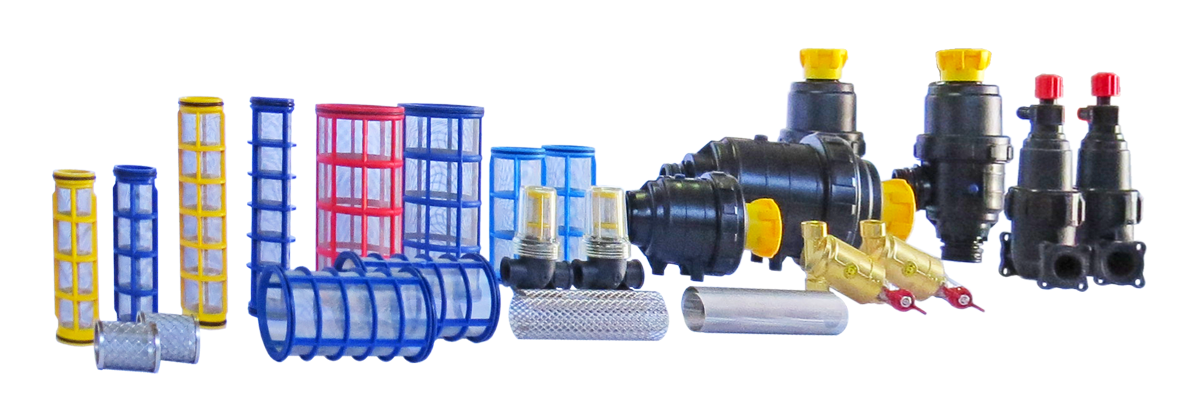

Filters and filter cartridges

We offer a large range of spare parts as well as complete suction and pressure filters with various flow rates and filtration levels manufactured by Arag.

Suction filters

The suction filter is, apart from the tank filling filter of the sprayer, the first stage of filtration of the working liquid, so it is very important that it fulfills its task as best as possible. The thoughtful design and high quality of Arag filters do the job. The suction filter significantly improves the life of the pump and control valve by eliminating problems related to the entry of "foreign matter".

ARAG symbol	Max capacity [lpm]	Screen type Inox [mesh]	Cartridge dimensions	Check valve	Connections
3102052	60	32	Ø70 mm x 100 mm	-	G 1 ¹/₄
31020D2	60	32	Ø70 mm x 100 mm	-	T5
3102053	60	50	Ø70 mm x 100 mm	-	G 1 ¹/₄
31020D3	60	50	Ø70 mm x 100 mm	-	T5
3122052	100	32	Ø70 mm x 148 mm	-	G 1 ¹/₄
31220D2	100	32	Ø70 mm x 148 mm	-	T5
3122053	100	50	Ø70 mm x 148 mm	-	G 1 ¹/₄
31220D3	100	50	Ø70 mm x 148 mm	-	T5
3142452	160	32	Ø80 mm x 170 mm	TAK	G 1 ¹/₂
31424E2	160	32	Ø80 mm x 170 mm	TAK	T6
3142453	160	50	Ø80 mm x 170 mm	TAK	G 1 ¹/₂
31424E3	160	50	Ø80 mm x 170 mm	TAK	T6
31424535	160	80	Ø80 mm x 170 mm	TAK	G 1 ¹/₂
31424E35	160	80	Ø80 mm x 170 mm	TAK	T6
3162062	220	32	Ø107 mm x 200 mm	TAK	G 1 ¹/₂
31624E2	220	32	Ø107 mm x 200 mm	TAK	T6
3162063	220	50	Ø107 mm x 200 mm	TAK	G 1 ¹/₂
31624E3	220	50	Ø107 mm x 200 mm	TAK	T6
31620635	220	80	Ø107 mm x 200 mm	TAK	G 1 ¹/₂
31624E35	220	80	Ø107 mm x 200 mm	TAK	T6
3172472	260	32	Ø107 mm x 286 mm	TAK	G 2
31724F2	260	32	Ø107 mm x 286 mm	TAK	T7
3172473	260	50	Ø107 mm x 286 mm	TAK	G 2
31724F3	260	50	Ø107 mm x 286 mm	TAK	T7
31724735	260	80	Ø107 mm x 286 mm	TAK	G 2
31724F35	260	80	Ø107 mm x 286 mm	TAK	T7

Pressure filters

Pressure filters are the next stage of filtration of the working liquid, which eliminates fine particles that can limit or block the flow through the section of nozzles or a single nozzle.

ARAG symbol	Max capacity [lpm]	Screen type Inox [mesh]	Cartridge dimensions	Max pressure [bar]	Connections
345032	150	32	Ø50 mm x 150 mm	50	G¹/₂
345033	150	50	Ø50 mm x 150 mm	50	G¹/₂
3450335	150	80	Ø50 mm x 150 mm	50	G¹/₂
004620	70	50	Ø40 mm x 63 mm	50	G ¹/₂
32621D2	280	32	Ø58 mm x 210 mm	15	T5
32621D3	280	50	Ø58 mm x 210 mm	15	T5
326 9113	280	50	Ø58 mm x 210 mm	15	871; 863; 864
32621D35	280	80	Ø58 mm x 210 mm	15	T5
326 91135	280	80	Ø58 mm x 210 mm	15	871; 863; 864
32241C2	160	32	Ø38 mm x 125 mm	14	T4
32241C3	160	50	Ø38 mm x 125 mm	14	T4
322 9113	160	50	Ø38 mm x 125 mm	14	871; 863
32241C35	160	80	Ø38 mm x 125 mm	14	T4
322 91135	160	80	Ø38 mm x 125 mm	14	871; 863
323022	80	32	Ø38 mm x 125 mm	12	G ¹/₂
323023	80	50	Ø38 mm x 125 mm	12	G ¹/₂
3230235	80	80	Ø38 mm x 125 mm	12	G ¹/₂
3240T022	55	32	Ø27 mm x 69 mm	10	G ¹/₂
3240T023	55	50	Ø27 mm x 69 mm	10	G ¹/₂
3240T0235	55	80	Ø27 mm x 69 mm	10	G ¹/₂
3240T024	55	100	Ø27 mm x 69 mm	10	G ¹/₂

** - producent zastrzega sobie prawo do wprowadzania zmian związanych z ciągłym doskonaleniem konstrukcji i wycofaniem poszczególnych modeli z produkcji.

** - podane wartości wydatków cieczy są wartościami teoretycznymi, w celu uzyskania wartości rzeczywistych należy przeprowadzić próbę polową.
